Clean Suite for CRM: Salesforce Reference Guide

Global Address Validation

Single Record Processing

Global Address Validation processes one Salesforce record through MD_GlobalAddressWSExt.

Introduction

The package reads the input fields from a globalAddress Custom Mapping. It sends the package JSON envelope to Melissa. It saves the response in MD_globalAddressResult__c and applies configured output mappings.

See Package Request Envelope for the actual request format.

How to use Lightning Quick Action

Before you use the action, add the package action to the active record page layout.

1. Open a record that has a Global Address Custom Mapping.

2. Start the configured Global Address quick action.

3. Wait for the package to process the record.

4. Review the configured output fields or MD_globalAddressResult__c.

Apex Use

Use the synchronous method for one record.

String outcome = MDPERSONATOR.MD_GlobalAddressWSExt.doGlobalAddress(recordId);

The method returns Success after processing. It does not return Melissa result codes.

Read the configured result-code output field or MD_globalAddressResult__c.Results__c for the result codes.

Trigger Use

Call doOneGlobalAddress(recordId) from trigger logic when the callout must run asynchronously. The method has @Future(callout=true) and returns no value.

Official Service Reference

See Melissa Global Address Verification documentation for service behavior and result codes.

Batch Processing

Clean Suite Batch Processing validates address data across large datasets asynchronously using Apex batch jobs.

Introduction

Batch processing uses MD_GlobalBatch to process thousands of Salesforce records. The batch engine reads a SOQL query and groups records into batches of 100. It sends requests to Melissa Global Address services. It then writes standardized address fields and result codes to Salesforce records.

Batch Job Flow

This flow shows how the batch job processes address records.

Diagram flow

1. SOQL query → Matching Salesforce records

2. Matching Salesforce records → Batches of 100 records

3. Batches of 100 records → MD_GlobalBatch

4. MD_GlobalBatch → Melissa Global Address service

5. Melissa Global Address service → Standardized fields and result codes

6. Standardized fields and result codes → Salesforce records

How to use the Clean Suite Batch interface

Follow these steps to launch a batch job from the user interface:

1. Open the Clean Suite app from the App Launcher.

2. Click the Clean Suite Batch tab.

3. Select Global Address from the Engine dropdown list.

4. Select the target Salesforce Object (for example Contact or Lead).

5. Select an active Field Mapping.

6. (Optional) Enter a custom SOQL WHERE clause to filter records (for example MailingPostalCode = NULL).

7. Click Run Batch.

8. Monitor progress under Setup → Async Apex Jobs.

Advanced Batch Processing

Exposed Methods

Invoke batch jobs programmatically using MD_CleanSuiteBatchController:

public static Id executeBatchJob(
String Engine,              // 'MD_GlobalBatch'
String BatchObject,         // 'Contact', 'Lead', or custom object name
String Query,               // Full SOQL query string if CustomQuery is true
String Mapping,             // Custom mapping record Name
Boolean RecordUpdate,       // true to update target records with address results
Boolean ProcessAll,         // true to process all records regardless of prior verification
Boolean CustomQuery,        // true to use custom SOQL query
String SmartMoverListName,  // Unused for Global Address (pass empty string)
String SmartMoverJobId      // Unused for Global Address (pass empty string)

)

Sample Code

Use this Apex code to launch a Global Address batch job from an admin script or Apex trigger:

// Define batch parameter values
String engine = 'MD_GlobalBatch';
String targetObject = 'Contact';
String customQuery = 'SELECT Id FROM Contact WHERE MailingCountry = \'US\' AND Clean_Suite_Global_Address_Result__c = NULL';
String mappingName = 'Contact Global Address Mapping';
Boolean updateRecords = true;
Boolean processAll = false;
Boolean isCustomQuery = true;

// Execute batch job
Id jobId = MDPERSONATOR.MD_CleanSuiteBatchController.executeBatchJob(
    engine,
    targetObject,
    customQuery,
    mappingName,
    updateRecords,
    processAll,
    isCustomQuery,
    '',
    ''
);

Best Practices

1. Limit Batch Scope: Pass a SOQL WHERE clause to target unverified records only. This reduces API credit usage.

2. Batch Size Limit: Keep batch size at 100 records per chunk to match Melissa service payload limits.

3. Avoid Concurrent Batches: Do not run two Global Address batch jobs on the same object at the same time. Concurrent jobs can cause record lock conflicts.

Admin Configuration

The package reads these configuration options from the latest MD_suiteSetting__c record named webServiceOptions. These options control address validation output and behavior.

UI Label	API Field	Allowed Values	Default	Effect
Country of Origin	countryOfOrigin__c	All ISO country codes (US, GB, CA, etc.)	US	Sets geographic context for address validation and output locale.
Output Script	outputScript__c	NOCHANGE, NATIVE, LATN	NOCHANGE	Controls character set conversion in output. NATIVE preserves the native script. LATN converts to Latin transliteration.
Geocode	geocode__c	GEOOFF, GEOON	GEOON	When GEOON, the service returns geocoordinates. When GEOOFF, geocoding is disabled.
Delivery Lines	gavDeliveryLines__c	On, Off	Off	When on, includes delivery point information in results.
Include Remnant	gavIncludeRemnant__c	On, Off	On	When on, includes remnant address lines (fragments that do not match known data).
Detailed Results	gavDetailedResults__c	On, Off	Off	When on, returns extended result detail in output.
Area Details	gavAreaDetails__c	On, Off	Off	When on, includes area-specific demographic and geographic details.
US Extras (Census, County, School)	gavUSExtras__c	On, Off	Off	When on, appends US census tract, county, and school district codes to results.
US Preferred City Names	gavUSPreferredCityNames__c	On, Off	Off	When on, the service returns USPS preferred city names instead of standard names.
Melissa City Keys	gavMelissaCityKeys__c	On, Off	Off	When on, includes Melissa Data proprietary city key identifier.
GB Extras (UPRN)	gavGBExtras__c	On, Off	Off	When on, UK addresses include Unique Property Reference Number (UPRN).
Extended Date/Time (UTC, DST)	gavExtendedDateTime__c	On, Off	Off	When on, the service returns UTC and daylight saving time information with geocoding results.
US Standardization Type	gavUSStandardizationType__c	Short, Long, Auto	Short	Controls US address format in output. Short represents two-letter state abbreviation. Long represents full state name. Auto lets the system decide based on address.
Line Separator	gavLineSeparator__c	SEMICOLON, PIPE, CR, LF, CRLF, TAB, BR	SEMICOLON	Specifies character used to separate multi-line address components in output.
Address Update Codes	globalVerifyLevel__c	Regex pattern strings (e.g., AV2[45])	AV2[45]	Specifies which Global Address result codes trigger record updates.

Result Codes

Global Address Validation returns record-level codes for each verified address and service-level codes for request errors or warnings.

For all Global Address Validation result codes, see Result Codes - Global Address Verification.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

Engineering Reference

Exposed Methods

MD_GlobalAddressWSExt.doGlobalAddress(Id recordId)

Item	Value
Scope	global static String
Processing	Synchronous
Input	Salesforce record ID
Success return	Literal Success
Empty return	'' when the initial object or result-object field-access check fails, or when no Custom Mapping exists for the record object.

The method does not return Melissa result codes. Read the configured result-code output field or MD_globalAddressResult__c.Results__c.

MD_GlobalAddressWSExt.doOneGlobalAddress(Id recordId)

Item	Value
Scope	global static void
Processing	@Future(callout=true)
Input	Salesforce record ID
Return	No value

doOneGlobalAddress calls doGlobalAddress in an asynchronous transaction.

Synchronous Workflow

1. Call doGlobalAddress with one Salesforce record ID.

2. The package checks object and result-object field access.

3. The package reads Custom Mappings for the record object.

4. The package sends each globalAddress mapping in the package JSON envelope.

5. The package saves response records and applies configured output mappings.

The package uses the mapping input entries for organization, address lines, locality, administrative area, postal code, and country.

Configuration

The package reads the latest MD_suiteSetting__c record named webServiceOptions.

Use this record to supply the Melissa customer ID and the Global Address options described in the API Reference Guide.

Apex Use

String outcome = MDPERSONATOR.MD_GlobalAddressWSExt.doGlobalAddress(recordId);

Treat outcome as package completion status. Do not treat it as a Melissa result code.

Official Service Reference

See Melissa Global Address Verification documentation for service fields and result codes.

API Reference Guide

This guide describes the request and response that MD_GlobalAddressWSExt uses. It does not describe a generic Melissa Cloud API request.

Package Endpoint

The package sends a JSON POST request to this named credential path:

callout:<namespace>MelissaData_GlobalAddress_API/v3/WEB/GlobalAddress/doGlobalAddress

The package sets Accept and Content-Type to application/json.

Package Request Envelope

MD_GlobalAddressWSExt builds one JSON object for each callout. Do not send the generic query parameters id, opt, a1, loc, or ctry when you use this package method.

{
    "TransmissionReference": "package-generated reference",
    "CustomerID": "URL-encoded customer ID",
    "Options": "package-generated options",
    "Records": [
        {
        "RecordID": "Salesforce record ID",
        "Organization": "mapped value",
        "AddressLine1": "mapped value",
        "AddressLine2": "mapped value",
        "AddressLine3": "mapped value",
        "AddressLine4": "mapped value",
        "AddressLine5": "mapped value",
        "AddressLine6": "mapped value",
        "AddressLine7": "mapped value",
        "AddressLine8": "mapped value",
        "Locality": "mapped value",
        "AdministrativeArea": "mapped value",
        "PostalCode": "mapped value",
        "Country": "mapped value"
        }
    ]
}

The package gets CustomerID from the latest MD_suiteSetting__c record named webServiceOptions.

The package builds Options from these fields on that settings record:

Setting Field	Package Option
geocode__c	OutputGeo
countryOfOrigin__c	CountryOfOrigin
outputScript__c	OutputScript
gavDeliveryLines__c	DeliveryLines
gavDetailedResults__c	DetailedResults
gavAreaDetails__c	AreaDetails
gavIncludeRemnant__c	IncludeRemnant
gavUSExtras__c	USExtras
gavUSPreferredCityNames__c	USPreferredCityNames
gavGBExtras__c	GBExtras
gavMelissaCityKeys__c	MelissaCityKeys
gavExtendedDateTime__c	ExtendedDateTime
gavUSStandardizationType__c	USStandardizationType
gavLineSeparator__c	LineSeparator

Package Response and Output

The package reads response records from the service JSON. It assigns the active mapping name to each response record.

The package saves each matched response to MD_globalAddressResult__c. It updates a Salesforce record only for output entries configured in a Custom Mapping.

The package can map these response values when the corresponding output entry exists:

Custom Mapping Output Key	Response Field	Description
globalAddressResult	MD_globalAddressResult__c.Id	Lookup to the MD_globalAddressResult__c record created for this verification.
resultCodes	Results__c	Comma-delimited result codes returned by the service.
addressLine1 through addressLine8	Matching AddressLine1__c through AddressLine8__c	The standardized or corrected contents of the input address line.
postalCode	PostalCode__c	ZIP code. The standardized contents of the postal code element.
locality	Locality__c	City. The standardized contents of the locality element.
administrativeArea	AdministrativeArea__c	State or province. The standardized contents of the administrative area element.
country	CountryName__c	The standardized contents of the country name element.
country2	CountryISO3166_1_Alpha2__c	The two-letter ISO 3166-1 country code.
country3	CountryISO3166_1_Alpha3__c	The three-letter ISO 3166-1 country code.
geolocation	Latitude__c and Longitude__c	The latitude and longitude coordinates of the delivery point.
organization	Organization__c	The organization name associated with the address.
FormattedAddress	FormattedAddress__c	The address formatted for mailing according to the destination country format.
AddressKey	AddressKey__c	The address key assigned by the postal authority for the country.
MelissaAddressKey	MelissaAddressKey__c	The globally unique Melissa address key that persistently identifies the address.

The package also supports configured outputs for returned address components, postal data, delivery data, and geocoding data. Review the Custom Mapping before you depend on an output field.

The method return value is not the service response. Read the mapped result-code field or the Results__c field on MD_globalAddressResult__c.

Official Service Reference

For the Melissa Cloud API field definitions and result-code meanings, see Melissa Global Address Verification documentation.

Global Email

Single Record Processing

Global Email processes one Salesforce record through MD_GlobalEmailWSExt.

Introduction

The package gets the input email from a globalEmail Custom Mapping. It sends the package JSON envelope to Melissa. It saves the response in MD_globalEmailResult__c and applies configured output mappings.

See Package Request Envelope for the actual request format.

How to use Lightning Quick Action

Before you use the action, add the package action to the active record page layout.

1. Open a record that has a Global Email Custom Mapping.

2. Start the configured Global Email quick action.

3. Wait for the package to process the record.

4. Review the configured output fields or MD_globalEmailResult__c.

Apex Use

Use the synchronous method for one record.

String outcome = MDPERSONATOR.MD_GlobalEmailWSExt.doGlobalEmail(recordId);

After processing, the method returns the literal Success. It does not return a Melissa result code.

Read the configured resultCodes output field or MD_globalEmailResult__c.Results__c for the service result codes.

Trigger Use

Call doOneGlobalEmail(recordId) from trigger logic when the callout must run asynchronously. The method has @Future(callout=true) and returns no value.

Official Service Reference

See Melissa Global Email documentation for service behavior and result codes.

Batch Processing

Global Email Batch Processing validates email deliverability across large record datasets asynchronously.

Introduction

Batch processing uses MD_GlobalEmailBatch to process thousands of email records. The batch framework selects records that match SOQL criteria and groups requests into batches of 100. It calls Melissa Global Email services and stores verification outputs and result codes on Salesforce objects.

Batch Job Flow

This flow shows how the batch job processes email records.

Diagram flow

1. SOQL query → Matching Salesforce records

2. Matching Salesforce records → Batches of 100 records

3. Batches of 100 records → MD_GlobalEmailBatch

4. MD_GlobalEmailBatch → Melissa Global Email service

5. Melissa Global Email service → Verification outputs and result codes

6. Verification outputs and result codes → Salesforce objects

How to use the Clean Suite Batch interface

Follow these steps to launch an email batch verification job:

1. Open the Clean Suite app from the App Launcher.

2. Click the Clean Suite Batch tab.

3. Select Global Email from the Engine menu.

4. Select the target Salesforce Object (for example Contact or Lead).

5. Select a configured Field Mapping.

6. (Optional) Provide a custom SOQL WHERE clause (for example Email != NULL AND Clean_Suite_Global_Email_Result__c = NULL).

7. Click Run Batch.

8. Check job completion in Setup → Async Apex Jobs.

Advanced Batch Processing

Exposed Methods

Launch email batch processing programmatically with MD_CleanSuiteBatchController:

public static Id executeBatchJob(
  String Engine,              // 'MD_GlobalEmailBatch'
  String BatchObject,         // Object API name (for example 'Contact')
  String Query,               // SOQL query string
  String Mapping,             // Custom Mapping record Name
  Boolean RecordUpdate,       // Set true to update source records
  Boolean ProcessAll,         // Set true to re-process verified records
  Boolean CustomQuery,        // Set true when passing custom SOQL
  String SmartMoverListName,  // Pass empty string
  String SmartMoverJobId      // Pass empty string
)

Sample Code

Use this Apex snippet to execute a Global Email batch job programmatically:

// Configure parameters for Global Email batch job
String engine = 'MD_GlobalEmailBatch';
String objectName = 'Lead';
String query = 'SELECT Id FROM Lead WHERE Email != NULL AND Clean_Suite_Global_Email_Result__c = NULL';
String mappingName = 'Lead Email Mapping';
Boolean updateTarget = true;
Boolean processAllRecords = false;
Boolean customQueryFlag = true;

// Run batch job
Id jobId = MDPERSONATOR.MD_CleanSuiteBatchController.executeBatchJob(
  engine,
  objectName,
  query,
  mappingName,
  updateTarget,
  processAllRecords,
  customQueryFlag,
  '',
  ''
);

Best Practices

1. Filter Out Blank Emails: Exclude null or empty email fields in your SOQL WHERE clause to avoid wasted callout requests.

2. Handle Catch-All Domains: Use Admin Panel settings to enable catch-all detection. This setting flags catch-all domain servers without marking email addresses as invalid.

3. Monitor Governor Limits: Set batch chunk size to 100 records to prevent callout timeout exceptions during peak network latency.

Service Tiers

Global Email validates a mailbox in one of two modes. The mode comes from the VerifyMailBox option.

EXPRESS

Express checks a submitted email against a cached database of known good and known bad addresses. Melissa caches each submitted email for a 90-day lookup cycle. Use Express when speed and throughput matter most.

Express does not perform a real-time mailbox check.

PREMIUM

Premium performs a real-time mailbox check. It uses domain-specific logic, SMTP commands, and other proprietary Melissa mechanisms to validate a mailbox. Use Premium when you need the highest level of mailbox verification.

Most mailbox checks take milliseconds. Some take up to the TimeToWait value, which defaults to 25 seconds. Choose Express for a time-sensitive process.

Mode the package sends

The Melissa service defaults to Premium. The Clean Suite admin setting geVerifyMode__c defaults to EXPRESS. The package sends the mode that this setting holds.

Result Codes

Global Email returns result codes that indicate the validation outcome. The codes fall into two categories: record-level codes and service-level codes.

Record-level codes apply to individual email records. Service-level codes apply to the request as a whole.

For all Global Email result codes, see Result Codes - Global Email.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

Engineering Reference

Exposed Methods

MD_GlobalEmailWSExt.doGlobalEmail(Id recordId)

Item	Value
Scope	global static String
Processing	Synchronous
Input	Salesforce record ID
Success return	Literal Success
Empty return	'' when the initial object or result-object field-access check fails, or when no Custom Mapping exists for the record object

The package method does not return a Melissa result code. After processing, it returns the literal Success.

Read the configured resultCodes output field or MD_globalEmailResult__c.Results__c for the service result codes.

MD_GlobalEmailWSExt.doOneGlobalEmail(Id recordId)

Item	Value
Scope	global static void
Processing	@Future(callout=true)
Input	Salesforce record ID
Return	No value

doOneGlobalEmail calls doGlobalEmail in an asynchronous transaction.

Synchronous Workflow

1. Call doGlobalEmail with one Salesforce record ID.

2. The package checks object and result-object field access.

3. The package reads Custom Mappings for the record object.

4. The package gets the mapped email input value.

5. The package sends the package JSON envelope to Global Email.

6. The package saves the response in MD_globalEmailResult__c.

7. The package applies configured output mappings to the source record.

8. The package returns Success.

The package ignores mappings whose service value is not globalEmail.

Configuration

The package reads customerId__c and geVerifyMode__c from an MD_suiteSetting__c record named webServiceOptions.

See Package Request Envelope for the exact request fields.

Apex Use

String outcome = MDPERSONATOR.MD_GlobalEmailWSExt.doGlobalEmail(recordId);

Use outcome only to check package completion. Do not use it as a Melissa result code.

Official Service Reference

See Melissa Global Email documentation for service fields and result codes.

API Reference Guide

This guide describes the request and response that MD_GlobalEmailWSExt uses. It does not describe a generic Melissa Cloud API request.

Package Endpoint

The package sends a JSON POST request to this named credential path:

callout:<namespace>MelissaData_GlobalEmail_API/v4/WEB/GlobalEmail/doGlobalEmail

The package sets Accept and Content-Type to application/json.

Package Request Envelope

MD_GlobalEmailWSExt builds one JSON object for each callout. Do not send generic GET parameters or request XML when you use this package method.

{
  "TransmissionReference": "package-generated reference",
  "CustomerID": "URL-encoded customer ID",
  "Options": "VerifyMailBox:<configured mode>",
  "Records": [
    {
      "RecordID": "Salesforce record ID",
      "Email": "mapped value"
    }
  ]
}

The package gets CustomerID and geVerifyMode__c from an MD_suiteSetting__c record named webServiceOptions.

The package adds VerifyMailBox:<geVerifyMode__c> only when geVerifyMode__c contains a value. The package sends an empty Options string when the setting has no value.

The package gets Email from a Custom Mapping input entry named email.

Package Response and Mapped Outputs

The package reads response records from the service JSON. It saves each matched response to MD_globalEmailResult__c.

The package updates the source Salesforce record only for output entries configured in a Custom Mapping.

Custom Mapping Output Key	Response Field	Description
globalEmailResult	MD_globalEmailResult__c	Lookup to the MD_globalEmailResult__c record created for this verification.
resultCodes	Results__c	Comma-delimited result codes returned by the service.
email	EmailAddress__c	The email address to be verified.
DeliverabilityConfidenceScore	DeliverabilityConfidenceScore__c	The probability, as a percentage from 0 to 100, that an email sent to this mailbox will be delivered successfully.
MailboxName	MailboxName__c	The mailbox or user name portion of the email address. This is the text before the @ character.
DomainName	DomainName__c	The domain name portion of the email address. This is the text between the @ and the . characters.
DomainAuthenticationStatus	DomainAuthenticationStatus__c	The security protocols used on the receiving mail server.
TopLevelDomain	TopLevelDomain__c	The description for the top-level domain of the email address. For example, com is Commercial.
TopLevelDomainName	TopLevelDomainName__c	The top-level domain name of the email address. This is the text after the ., for example com.
DateChecked	DateChecked__c	The date the email was validated. The value is UTC Unix time (epoch time) in the MM/DD/YYYY H:MM:SS format.
EmailAgeEstimated	EmailAgeEstimated__c	The estimated minimum age of the email in days, based on historical data. The value is zero when no historical data exists for the email.
DomainAgeEstimated	DomainAgeEstimated__c	The estimated age of the domain in days.
DomainExpirationDate	DomainExpirationDate__c	The date the domain expires, in the YYYY-MM-DDTHH:MM:SS format. This is when the domain will be renewed or becomes available to buy.
DomainCreatedDate	DomainCreatedDate__c	The date the domain was created in the YYYY-MM-DDTHH:MM:SS format.
DomainUpdatedDate	DomainUpdatedDate__c	The date the domain was last updated in the YYYY-MM-DDTHH:MM:SS format.
DomainEmail	DomainEmail__c	The email associated with the domain owner.
DomainOrganization	DomainOrganization__c	The company associated with the domain owner.
DomainAddress1	DomainAddress1__c	The address of the DomainOrganization.
DomainLocality	DomainLocality__c	The city of the DomainOrganization.
DomainAdministrativeArea	DomainAdministrativeArea__c	The state of the DomainOrganization.
DomainPostalCode	DomainPostalCode__c	The postal code of the DomainOrganization.
DomainCountry	DomainCountry__c	The country of the DomainOrganization.
DomainCountryCode	DomainCountryCode__c	The country code of the DomainCountry.
DomainAvailability	DomainAvailability__c	Shows whether the domain is available for purchase.
DomainPrivateProxy	DomainPrivateProxy__c	Shows whether the domain is behind a private proxy.
PrivacyFlag	PrivacyFlag__c	Shows whether the email is subject to additional privacy regulations, such as GDPR. Returns Y for yes and N for no.
MXServer	MXServer__c	Available with a premium subscription only. The mail exchange (MX) server used to validate the email.
DomainTypeIndicator	DomainTypeIndicator__c	Predicts whether the email belongs to a person or an organization, based on the domain.
BreachCount	BreachCount__c	The number of known data breaches that involve this email account.

Synchronous Method Return Value

doGlobalEmail(Id recordId) does not return a Melissa result code. After processing, the method returns the literal string Success.

The method returns an empty string when its initial object or result-object field-access check fails. It also returns an empty string when no Custom Mapping exists for the record object.

Read the configured resultCodes output field or MD_globalEmailResult__c.Results__c for service result codes.

Official Service Reference

For the Melissa Cloud API field definitions and result-code meanings, see Melissa Global Email documentation.

Global Express Entry

Single Record Processing

Global Express Entry shows address suggestions during Salesforce data entry.

Supported surfaces

Use an Express Entry component where a user enters an address.

Surface	Component	Result
Lightning page	LX_ExpressEntry	The user selects a suggestion and saves the current record.
New Screen Flow	globalEEFreeForm	The component sends selected values to Flow output variables.
Existing Aura Screen Flow	LX_ExpressEntry_Flow	The component sends selected values to Aura Flow output attributes.
Legacy New or Edit override	Express Entry Visualforce page	The controller updates the mapped fields.

Express Entry is not a Lightning record quick action.

Add Express Entry to a Lightning page

For this procedure with screenshots of each step, see Lightning Global Express Entry.

1. Open the target Lightning page in App Builder.

2. Add CS ExpressEntry to the page.

3. Set each target field API name in the component properties.

4. Save and activate the page.

5. Enter an address in the component.

6. Select a suggestion.

7. Select Save.

LX_ExpressEntry can update the configured Street, Suite, City, State, Postal Code, Country, County, Latitude, Longitude, MAK, and BaseMAK fields. Leave an optional target field blank when the component must not update it.

The component defaults to US, 25 maximum results, three input characters, and mixed case. It also enables latitude, longitude, county, street-and-suite combination, and full U.S. postal code.

Add Express Entry to a Screen Flow

globalEEFreeForm

1. Create or edit a Screen Flow.

2. Add a Screen element.

3. Add globalEEFreeForm to the screen.

4. Set Available Countries (CSV) when required.

5. Bind the required output properties to Flow variables.

6. Use the variables in later Flow elements.

The LWC has the lightning__FlowScreen target only. It defaults Available Countries (CSV) to US,GB,DE. It sends a request after more than three input characters. It requests up to 10 suggestions.

The LWC notifies Flow for street, city, state, postalCode, country, addressLine2, county, plus4Code, latitude, longitude, formattedAddress, mak, and baseMAK. Do not use addressLine1 for the selected street. The selection code does not assign or notify it.

LX_ExpressEntry_Flow

1. Add a Screen element.

2. Add MD Express Entry Flow.

3. Set the required component inputs.

4. Bind the required outputs.

5. Save and activate the flow.

The Aura Flow component supports Street, Suite, City, State, PostalCode, County, Country, Latitude, Longitude, MAK, BaseMAK, and userChangedValues.

Test a configured surface

1. Open the configured Lightning page, Screen Flow, or legacy override.

2. Enter an address.

3. Select a suggestion.

4. Confirm that the configured record fields or Flow variables contain the selected values.

Do not test Express Entry by calling internal package methods. Do not expose or log service credentials.

Configuration Options

Administrators can configure these Global Express Entry options in the Clean Suite Administration panel.

UI Label	API Field	Allowed Values	Default	Effect
Default Country	eeCountry__c	Any ISO 3166-1 alpha-2 country code (US, GB, CA, and so on)	US	Sets the default country context for address lookup in the form. Users can override this setting per session.
Minimum Keystrokes for Lookup	eeMinLookup__c	Any positive integer	3	Specifies the minimum number of characters users must type before Express Entry triggers address lookup suggestions.
Casing	eeToggleCase__c	MIXED, UPPER	MIXED	Controls the character case in Express Entry output. MIXED preserves the input case. UPPER converts all output to uppercase.

Result Codes

Global Express Entry returns both record-level and transmission-level result codes.

For all Global Express Entry result codes, see GlobalExpressEntry-ResultCodesFull.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

Engineering Reference

This reference describes source-defined Clean Suite package behavior. It does not define a custom subscriber integration API.

MD_ExpressEntry methods

MD_ExpressEntry is a global with sharing class. Its methods have different visibility.

Method	Source declaration	Return value	Use
getExpressToken()	@AuraEnabled static webService String	Internal credential string, blank string, or a customer ID fallback	Managed package components only. The method has no public or global modifier. Subscriber code must not call it.
getResponse(String request)	@AuraEnabled global static String	HTTP response body, an Exception: string, or Error! in tests	Package callout helper.
getResponseFF(String input, String countryCode)	@AuraEnabled global static String	Cloud response body, {"Error": "..."}, or {"Results": []} in tests	Package free-form callout helper. It gets its credential internally.
updateRecord(Id recordId, String fieldMap)	@AuraEnabled global static String	SUCCESS or an ERROR: string	Package record-update helper.

Do not use getExpressToken() in subscriber Apex, Aura, LWC, Flow, or browser code. Do not expose or log the credential that package components receive.

Package service path

getResponseFF builds this named-credential path:

callout:<package namespace>MelissaData_ExpressEntry_API/web/GlobalExpressFreeForm

The method adds cols, format, t, id, maxrecords, nativecharset, opt, country, and ff. The method URL-encodes country and ff. It sets format=json, maxrecords=10, nativecharset=true, and empty cols and opt.

The managed Aura and LWC components use a browser request to the JSONP endpoint. See the API Reference Guide for each surface.

Supported package procedures

Use a package surface instead of custom controller code.

1. Add LX_ExpressEntry to a Lightning page.

2. Add globalEEFreeForm to a new Screen Flow.

3. Keep LX_ExpressEntry_Flow in an existing Aura Screen Flow.

4. Use a supported Visualforce page only for a legacy New or Edit override.

The package does not provide an Express Entry Lightning record quick action.

Legacy Visualforce mapping

Legacy Visualforce pages use MD_expressEntryMap__c records. The controller matches objectPrefix__c to the record object prefix.

Each map records these target field API names:

• streetField__c

• postalCodeField__c

• countryField__c

• cityField__c

• stateField__c

The controller checks access to the target object and fields before it enables Express Entry.

API Reference Guide

This guide separates the Melissa Cloud API from the Clean Suite package.

Melissa Cloud API

Global Express Free Form accepts GET requests at these official endpoints:

Use	Endpoint
HTTP API	https://expressentry.melissadata.net/web/GlobalExpressFreeForm
JavaScript response	https://expressentry.melissadata.net/jsonp/GlobalExpressFreeForm

The API requires the id query parameter. It identifies a Melissa license key. Do not expose or log this value.

Parameter	Required	Description
id	Yes	Melissa license key.
ff	No	Free-form address input.
country	No	ISO 3166-1 alpha-2 code or country name. The default is US.
format	No	json, jsonp, or xml, where the endpoint supports it.
maxrecords	No	Maximum results. The default is 10. The maximum is 100.
cols	No	gbextras or results.
nativecharset	No	true, false, or blank.
opt	No	Output options. poboxes:true allows U.S. P.O. Box and military results.
diacriticreplace	No	true replaces diacritics. false keeps them.

The Cloud response is an object. It contains Version, ResultCode, ErrorString, and Results. Results is an array. Each array item contains an Address object.

The Address object can contain DeliveryAddress, Locality, AdministrativeArea, PostalCode, PostalCodePrimary, PostalCodeSecondary, CountryName, ISO3166_2, SubAdministrativeArea, MAK, BaseMAK, Latitude, and Longitude. Fields vary by result and country.

ResultCode is a response-level string. It is not the Results array. XS01, XS02, and XS03 report complete, partial, and no-result responses.

Clean Suite package behavior

The package gets its credential internally. Do not create a direct Cloud request from subscriber Apex, Aura, or LWC code.

Function Name	Request Construction
LX_ExpressEntry	Sends a browser GET request to the JSONP endpoint. It sends id, opt=poboxes:true, format=json, maxrecords, ff, and country.
LX_ExpressEntry_Flow	Sends the same JSONP request as LX_ExpressEntry.
globalEEFreeForm	Sends a browser GET request to the JSONP endpoint. It sends id, ff, country, maxrecords=10, format=json, and an empty opt value.
MD_ExpressEntry.getResponseFF	Uses the package Express Entry named credential and the /web/GlobalExpressFreeForm path. It sends empty cols and opt, format=json, an internal transmission reference, an internal credential, maxrecords=10, nativecharset=true, country, and ff.

The Aura components parse data.d.Results. The LWC accepts data.d.Results and data.Results. Both forms require an array. The components read fields from each Results[].Address object.

Use the package components for package address entry. Use the official Cloud API documentation for an independent Cloud integration.

Global Phone

Single Record Processing

The quick action CS_GlobalPhoneAction calls MD_GlobalPhoneWSExt.doGlobalPhone for the current record.

Prerequisite

Create the quick action for CS_GlobalPhoneAction. Add the action to the record page layout. See Add a Quick Action to a Record Layout.

Procedure

1. Open a record that has a globalPhone mapping.

2. Select Verify Phone.

3. Wait for the quick action to close.

4. Read the confirmation message that appears at the top of the page.

5. Review the refreshed record.

The action runs immediately. It reads the mapped phone and optional country inputs. It writes the configured output-map values and its MD_globalPhoneResult__c response record. It closes the quick action, shows a success or failure confirmation message, and refreshes the record view. You do not review a response dialog or save the record manually.

Apex Invocation

String status = MDPERSONATOR.MD_GlobalPhoneWSExt.doGlobalPhone(recordId);

The method returns a package status string. Read mapped fields or MD_globalPhoneResult__c.Results__c for response result codes.

Input Requirement

Map a nonblank source field to phone. The extension does not send records with blank PhoneNumber values.

Batch Processing

MD_GlobalPhoneBatch implements Database.Batchable<sObject> and Database.AllowsCallouts.

Constructor

new MDPERSONATOR.MD_GlobalPhoneBatch(
  query,
  updateContact,
  processAll,
  cleanSuiteMappings,
  mappingName
)

Argument	Use
query	SOQL query for the batch scope.
updateContact	Stored by the batch class.
processAll	Process records that already have a stored Global Phone result when true.
cleanSuiteMappings	Use the Clean Suite mapping path when true.
mappingName	Process only the globalPhone mapping with this name.

Processing Contract

1. Create a mapping with service set to globalPhone.

2. Set the input phone field in the mapping.

3. Add Country or CountryOfOrigin only when you map those values.

4. Run the batch with a query that selects the target record IDs.

5. Review the MD_globalPhoneResult__c record for each processed response.

The batch reads records in its Salesforce scope. It builds Global Phone requests in groups of 100. It stores parsed responses in MD_globalPhoneResult__c. When the mapping has configured output fields, it writes the mapped values to the source records.

When processAll is false, the batch skips a source record that already has a stored result record. The batch uses the result record Id list to make this decision.

Example

Database.executeBatch(
   new MDPERSONATOR.MD_GlobalPhoneBatch(
       'SELECT Id FROM Contact WHERE Phone != NULL',
       true,
       false,
       true,
       'Contact Global Phone'
   )
 );

Use a query and mapping name that exist in the subscriber org. The package does not require a Contact or Lead object.

Service Tiers

Global Phone verifies a number in one of two modes. The mode comes from the VerifyPhone option.

Express

Express validates a number against a database of known phone numbers. Express is the Melissa default mode, and the Clean Suite admin setting also defaults to it.

Premium

Premium validates a number against the same database. When a number was last validated in real time more than 180 days ago, Premium runs a new real-time check.

Line type result codes for cell, landline, and VOIP are returned in Premium mode only. Melissa returns line type for the United States and Canada only.

CallerID Output

CallerID returns the user name that the Melissa Caller ID service holds for the phone number.

Melissa returns caller ID data for the United States only. The service returns a blank value for a number in any other country.

The CallerID request option is off by default. Set it to true to add the caller ID to a phone number that the service finds valid.

Result code GE26 means that the license key does not have caller ID enabled. Result code PS31 means that the caller ID lookup timed out.

Result Codes

Global Phone returns record-level codes for each record processed and service-level codes for the request as a whole.

For all Global Phone result codes, see Result Codes - Global Phone.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

Engineering Reference

Callable Surface

MD_GlobalPhoneWSExt contains the package API.

Method	Visibility and return Behavior
doGlobalPhone(Id recordId)	global static String, @AuraEnabled	Runs the mapped Global Phone request. It returns '' when the record object has no custom mappings. It returns FAIL when the source object cannot be updated. Otherwise it returns Success.
doOneGlobalPhone(Id recordId)	global static void, @Future(callout=true)	Calls doGlobalPhone in a future callout context.
doProcess(List<MD_GlobalPhoneRequest>, String mappingName)	public List<MD_GlobalPhoneResponse>	Sends the supplied records. It adds mappingName to each parsed response.
doSaveResponse(List<MD_GlobalPhoneResponse>)	public void	Upserts MD_globalPhoneResult__c records.

The MD_GlobalPhoneRequest type has RecordID, PhoneNumber, Country, and CountryOfOrigin. The response type contains only the fields in the API reference.

Mapping Contract

Use a mapping whose service value is globalPhone.

Map section	Supported key
Input	phone
Optional input	Country, CountryOfOrigin
Output	globalPhoneResult, resultCodes, phone, administrativeArea, countryAbbreviation, countryName, carrier, callerID, dst, internationalPhoneNumber, language, latitude, locality, longitude, phoneInternationalPrefix, phoneCountryDialingCode, phoneNationPrefix, phoneNationalDestinationCode, phoneSubscriberNumber, utc, postalCode, suggestions, timeZoneCode, timeZoneName
The extension reads configured fields from the source record. It stores a response in MD_globalPhoneResult__c. It then writes only configured output-map values to the source record.

Settings

The extension reads the webServiceOptions MD_suiteSetting__c record.

Field	Use
customerId__c	Sends the customer ID.
globalPhoneMode__c	Adds the VerifyPhone option when it has a value.
globalPhoneCallerID__c	Adds the CallerID option when it has a value.

Use from Apex

String status = MDPERSONATOR.MD_GlobalPhoneWSExt.doGlobalPhone(recordId);

Call doOneGlobalPhone from a trigger when a future callout is appropriate. Do not expect the synchronous method to return service result codes. It returns a package status string.

API Reference Guide

Clean Suite sends Global Phone requests through the MelissaData_GlobalPhone_API Named Credential.

Package Call

Item	Package behavior
Endpoint	callout:MDPERSONATOR__MelissaData_GlobalPhone_API/v4/WEB/GlobalPhone/doGlobalPhone in a subscriber org.
Method	POST
Headers	Accept: application/json and Content-Type: application/json
Request body	A JSON object.
Batch limit	The extension sends records in groups of 100.

The namespace prefix is empty in the packaging org. Salesforce resolves the named credential base URL.

Request Body

The extension writes these top-level fields.

Field	Package source
TransmissionReference	MD_UtilExt.getTransmissionReference()
CustomerID	MD_suiteSetting__c.customerId__c
Options	VerifyPhone:<globalPhoneMode__c> and CallerID:<globalPhoneCallerID__c> when the settings have values
Records	An array of phone records

The extension sends a record only when PhoneNumber is not blank.

Record field	Mapping key	Description
RecordID	Salesforce record Id	The source record Id.
PhoneNumber	phone	The mapped phone value.
Country	Country	The mapped country value, when configured.
CountryOfOrigin	CountryOfOrigin	The mapped country-of-origin value, when configured.

Parsed and Stored Response Fields

The extension parses these fields from each response record. It writes every listed field to MD_globalPhoneResult__c. A configured globalPhone output map can also write the selected values to the source record.

Response field	Result object field	Description
RecordID	RecordID__c	A unique identifier for the current record.
Results	Results__c	Comma-delimited result codes for the record.
PhoneNumber	PhoneNumber__c	The standardized phone number after verification.
AdministrativeArea	AdministrativeArea__c	The administrative area associated with the phone number.
CountryAbbreviation	CountryAbbreviation__c	The country abbreviation for the phone number.
CountryName	CountryName__c	The country name for the phone number.
Carrier	Carrier__c	The name of the carrier for the phone number.
CallerID	CallerID__c	The caller ID name appended to the phone number.
DST	DST__c	Returns Y for yes or N for no, based on whether the region observes daylight saving time.
InternationalPhoneNumber	InternationalPhoneNumber__c	The phone number in the format to dial internationally.
Language	Language__c	The predominant language of the region for the phone number.
Latitude and Longitude	Latitude__c and Longitude__c	The latitude and longitude of the service area for the phone number.
Locality	Locality__c	The city associated with the phone number.
PhoneInternationalPrefix	PhoneInternationalPrefix__c	The international exit code to call outside the dialing country.
PhoneCountryDialingCode	PhoneCountryDialingCode__c	The country dialing code, dialed after the international prefix.
PhoneNationPrefix	PhoneNationPrefix__c	The national prefix dialed before an area code within the same country.
PhoneNationalDestinationCode	PhoneNationalDestinationCode__c	The national destination code that identifies a numbering area.
PhoneSubscriberNumber	PhoneSubscriberNumber__c	The subscriber number associated with the phone number.
UTC	UTC__c	The UTC offset for the time zone of the phone number.
PostalCode	PostalCode__c	US only. The ZIP code for the locality.
Suggestions	Suggestions__c	Possible alternate phone numbers, for single-record requests.
TimeZoneCode and TimeZoneName	TimeZoneCode__c and TimeZoneName__c	The time zone code and its full name.

For result-code meanings, see Result Codes - Global Phone or the consolidated Result Codes reference.

Personator Consumer

Single Record Processing

The quick action CS_PersonatorAction calls MD_PersonatorWSExt.doPersonator for the current record.

Prerequisite

Create the quick action for CS_PersonatorAction. Add the action to the record page layout. See Add a Quick Action to a Record Layout.

Procedure

1. Open a record that has a personator mapping.

2. Select Verify Domestic Addr/Email/Phone/Name.

3. Wait for the quick action to close.

4. Read the confirmation message.

5. Review the refreshed record.

The action runs immediately. It sends the configured Personator inputs. It writes configured output-map values and stores response data in MD_personatorResult__c. It closes the action, shows a confirmation message, and refreshes the record view. You do not save the record manually.

Apex Invocation

String status = MDPERSONATOR.MD_PersonatorWSExt.doPersonator(recordId);

The method returns a package status string. Read mapped values or MD_personatorResult__c.Results__c for service result codes.

Input Guidance

Map the fields needed by the enabled Personator actions. For name and address matching, map the relevant name and address source fields. Do not assume that a demographic field is returned. The package requests demographic columns only when its settings enable them.

Batch Processing

MD_PersonatorBatch implements Database.Batchable<sObject> and Database.AllowsCallouts.

Argument	Use
query	SOQL query for the Salesforce batch scope.
updateContact	Update-control value stored by the class.
processAll	Process records with an existing result when true.
cleanSuiteMappings	Use the Clean Suite mapping path when true.
mappingName	Process the named Personator mapping.

Procedure

1. Create a mapping with service set to personator.

2. Map the required source fields for the selected Personator actions.

3. Map the source fields that receive returned values.

4. Create a SOQL query that selects the target record IDs.

5. Start MD_PersonatorBatch with the query and mapping name.

6. Review the MD_personatorResult__c records after the job completes.

The batch sends request records in groups of 100. It selects actions, options, and columns from MD_suiteSetting__c. It stores each parsed response in MD_personatorResult__c. It writes only configured output-map values to the source record.

When processAll is false, the batch skips a record that has a result for the mapping. Do not assume that the batch supports only Contact or Lead. It uses the mapped source object.

Example

Database.executeBatch(
  new MDPERSONATOR.MD_PersonatorBatch(
      'SELECT Id FROM Contact WHERE MailingStreet != NULL',
      true,
      false,
      true,
      'Contact Personator'
  )
);

Use a query and mapping name that exist in the subscriber org.

Administrator Options

An administrator configures Personator Consumer behavior on the Clean Suite Administration page. The table below lists every real option available, its default value, and what it does.

UI Label	Default	What it does
Verify Action	Off	Enables the Verify action to match household members. Requires Verify license.
Move Action	Off	Enables the Move action to detect moved households. Requires Move license.
Append Action	Off	Enables the Append action to add missing address data. Requires Append license.
Advanced Address Correction	Off	Applies advanced correction logic to address components. Used during Check operation.
USPS Preferred City	Off	Returns USPS preferred city names instead of delivery city.
Long Address Format	Off	Off equals standard format. On always uses long format. Auto lets system decide based on length.
Postal Code Format	9	Format for postal codes in output. 5 equals 5-digit format. 9 equals 9-digit ZIP+4 format.
Separate Suite	Off	Returns suite and apartment numbers in a separate field. If Off, appends them to street address.
Centric Hint	Auto	Specifies data element that Verify and Append prioritize for match logic. Auto lets system decide.
Append Options	Blank	Blank appends only if Verify fails. Always attempts append. CheckError appends only if Check fails.
Demographics	Off	Includes demographic data in output. Returns age, income, household info. Requires Demographics license.
Geocoding	Off	Off disables geocoding. Geocode returns street-level coordinates. GeoPoint returns rooftop-level coordinates.
Apply Filters to Clean Suite Calls	Off	When enabled, result code filters below apply to all Clean Suite Personator calls.
Name Update Codes	NS01	Specifies Personator result codes that trigger name field updates. Uses regex patterns.
Address Update Codes	AS0[123]	Specifies Personator result codes that trigger address field updates. Uses regex patterns.
Phone Update Codes	PS0[12]	Specifies Personator result codes that trigger phone field updates. Uses regex patterns.
Email Update Codes	ES01	Specifies Personator result codes that trigger email field updates. Uses regex patterns.

Result Codes

Personator Consumer returns result codes to indicate request and record outcomes. The following sections list official Melissa result codes by category.

For all Personator Consumer result codes, see Result Codes - Personator Consumer.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

Engineering Reference

Callable Surface

Method	Visibility and return	Behavior
doPersonator(Id recordId)	global static String, @AuraEnabled	Runs mapped Personator processing for one record. It returns Failure for a null Id, FAILURE for an object update-permission failure, '' when no mapping exists, and otherwise Success.
doOnePersonator(Id recordId)	global static void, @Future(callout=true)	Calls doPersonator in a future callout context.
doOnePersonatorBatch(List<Id>)	global static void, @Future(callout=true)	Processes each supplied record Id.
doProcess(List<MD_PersonatorRequest>, String mappingName)	public List<MD_PersonatorResponse>	Sends mapped records and adds the mapping name to each response.
doSaveResponse(List<MD_PersonatorResponse>)	public void	Upserts the result records.

MD_PersonatorRequest defines the request fields in the API reference. MD_PersonatorResponse defines the parsed service fields.

Mapping Contract

Use a mapping whose service value is personator.

The extension reads the configured input-map fields from the source record. It writes the selected output-map fields to the source record. It stores the full package response in MD_personatorResult__c for the mapping and record Id.

Settings

The extension reads the webServiceOptions MD_suiteSetting__c record.

Settings	Package effect
isCheckAction__c, isVerifyAction__c, isAppendAction__c, isMoveAction__c	Selects service actions. Check is always included in mapped processing.
SeparateSuite__c, grpAddressDetails__c, grpCensus__c, grpGeocode__c, grpNameDetails__c, grpParsedAddress__c, grpParsedEmail__c, grpParsedPhone__c, grpDemographics__c, grpCensus2__c, grpIPAddress__c	Adds the matching response columns.
aac__c, centricHint__c, append__c, usePreferredCity__c, longAddressFormat__c	Adds request options.
geoLevel__c and zipFormat__c	Controls geocode and postal response columns.

Apex Invocation

String status = MDPERSONATOR.MD_PersonatorWSExt.doPersonator(recordId);

Call doOnePersonator from a trigger when a future callout is appropriate. The returned value is a package status string, not a service result-code list.

API Reference Guide

Clean Suite calls Personator through the MelissaData_Personator_API Named Credential.

Package Call

Item	Package behavior
Endpoint	callout:MDPERSONATOR__MelissaData_Personator_API/v3/WEB/ContactVerify/doContactVerify in a subscriber org.
Method for mapped processing	POST
Headers	Accept: application/json and Content-Type: application/json
Request body	A JSON object.
Request limit	doProcess sends records in groups of 100.

The namespace prefix is empty in the packaging org. The legacy Visualforce path uses a separate GET request and is not the mapped processing interface.

Mapped Request Body

Top-level field	Package source
TransmissionReference	MD_UtilExt.getTransmissionReference()
CustomerID	MD_suiteSetting__c.customerId__c
Actions	Check plus configured Verify, Append, and Move actions
Options	Package settings such as AdvancedAddressCorrection, CentricHint, Append, UsePreferredCity, and LongAddressFormat
Columns	Required and configured output columns
Records	An array of mapped person records

The Aura callable path sends these mapped record fields. It does not send cloud-only aliases or request-type fields that this path does not map.

Record field	Input-map key
RecordID	Record Id
FullName	fullName
FirstName and LastName	firstName and lastName
CompanyName	company
AddressLine1 and AddressLine2	addressLine1 and addressLine2
City, State, PostalCode, and Country	city, state, postalCode, and country
EmailAddress	email
PhoneNumber	phone
FreeForm	freeform

Stored Response Contract

MD_PersonatorResponse parses the service response. The package writes configured output-map values to the source record. It also upserts complete response data into MD_personatorResult__c for mapped processing. The stored response includes RecordID, Results, standardized name, address, phone, email, parsed components, geocode, census, and any configured demographic values.

Do not assume that a response field is requested. The Columns value controls optional fields. The package always requests DateLastConfirmed. It adds other columns from MD_suiteSetting__c settings and enabled actions.

Property

Clean Suite Property uses a property custom mapping and MD_PropertyV4WSExt.

API Reference

Item	Package behavior
Named Credential	MelissaData_Property_API
Endpoint	callout:MDPERSONATOR__MelissaData_Property_API/v4/WEB/LookupProperty in a subscriber org.
Method	POST
Headers	Accept: application/json and Content-Type: application/json
Request limit	doProcess groups records in sets of 100.

The request body contains TransmissionReference, CustomerId, Columns: GrpAll, TotalRecords, and Records. CustomerId comes from MD_suiteSetting__c.customerId__c.

The package sends every listed field in each Records element.

Payload field	Request type field
RecordID	RecordID
AddressKey	AddressKey
FIPS	FIPS
APN	APN
Account	Account
MAK	MAK
AddressLine1 and AddressLine2	AddressLine1 and AddressLine2
City, State, PostalCode, and Country	Same names

MD_PropertyV4_LookupPropertyRequest also declares FreeForm. The current request builder does not send FreeForm.

The Aura callable method maps only addressLine1, addressLine2, city, state, postalCode, and country. It does not map AddressKey, FIPS, APN, Account, or MAK from the source record.

Response and Mapping Contract

The response type parses RecordID, Results, and these nested response groups:

Response group
Parcel
Legal
PropertyAddress
ParsedPropertyAddress
PrimaryOwner and SecondaryOwner
OwnerAddress and LastDeedOwnerInfo
CurrentDeed, Tax, PropertyUseInfo, and SaleInfo
PropertySize, Pool, IntStructInfo, and IntRoomInfo
IntAmenities, ExtStructInfo, ExtAmenities, and ExtBuildings
Utilities, Parking, YardGardenInfo, EstimatedValue, and Shape

doSaveResponse writes parsed group members to MD_propertyResult__c. A property output map can write only these response values to the source record.

Output-map key	Stored response field
propertyResult	Result record Id
resultCodes	Results__c
formattedAPN, unformattedAPN, alternateAPN	Corresponding APN fields
primaryOwner1, primaryOwnerFirst1, primaryOwnerLast1	First primary-owner name fields
primaryOwner2, primaryOwnerFirst2, primaryOwnerLast2	Second primary-owner name fields
secondaryOwner3, secondaryOwner4	Third and fourth owner names
ownerStreet, ownerCity, ownerState, ownerPostalCode	Owner address fields
propertyUseGroup, propertyUseStandardized	Property-use fields
mortgageDate, mortgageAmount, lenderName	Mortgage fields
deedLastSaleDate, deedLastSalePrice	Last-sale fields
yearAssessed, totalAssessedValue, taxAmount	Assessment and tax fields
yearBuilt, bedrooms, bathCount, bathPartialCount	Building fields
areaGross, areaLotSF	Area fields

Do not describe a nested group as a source-record update unless the active output map includes its listed value.

Engineering Reference

Method	Visibility and return	Behavior
doLookupProperty(Id recordId)	global static String, @AuraEnabled	Processes each property mapping for the source record. Returns '' when the record object has no custom mappings; otherwise returns Success.
doOneLookupProperty(Id recordId)	global static void, @Future(callout=true)	Calls doLookupProperty in a future callout context.
doProcess(List<MD_PropertyV4_LookupPropertyRequest>, String mappingName)	public List<MD_PropertyV4_LookupPropertyResponse>	Sends the request records and adds the mapping name to each response.
doSaveResponse(List<MD_PropertyV4_LookupPropertyResponse>)	public void	Upserts MD_propertyResult__c records.

Single Record Processing

The quick action CS_PropertyAction calls doLookupProperty during initialization.

1. Open a record that has a property mapping.

2. Select Verify Property.

3. Wait for the quick action to close.

4. Read the confirmation message that appears at the top of the page.

5. Review the refreshed record.

The action runs immediately. It writes configured output-map values and stores the response. It closes the quick action, shows a success or failure confirmation message, and refreshes the record view. No review dialog or manual record save occurs.

Batch Processing

The installed package has no MD_PropertyV4Batch class and no Property batch engine. Do not configure the Clean Suite batch interface for Property. You can call doProcess from custom Apex only when your implementation supplies MD_PropertyV4_LookupPropertyRequest records and manages Salesforce callout limits.

Apex Invocation

String status = MDPERSONATOR.MD_PropertyV4WSExt.doLookupProperty(recordId);

The method returns a package status string. Read MD_propertyResult__c.Results__c or mapped output fields for service results.

Result Codes

Property V4 returns record-level code families.

For all Property codes, see Property-ResultCodesFull.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

SmartMover: NCOA & CCOA

Single Record Processing

SmartMover does not support single-record processing.

Why Single Record Processing Is Not Available

SmartMover accesses United States Postal Service National Change of Address (NCOALink) data and Canada Post Change of Address (CCOA) data. These services only permit batch processing for approved mailing list maintenance.

USPS NCOALink requirements require each NCOA request to contain a minimum of 100 unique names and addresses. This rule prevents individual address lookups and protects consumer move data.

Batches with fewer than 100 records can receive CASS address standardization. They do not receive NCOA move updates.

Use the Correct Alternative

For one record, use Personator. It verifies identity and address data. It does not return change-of-address data.

For NCOA or CCOA update data, collect at least 100 unique record addresses and run a SmartMover batch job.

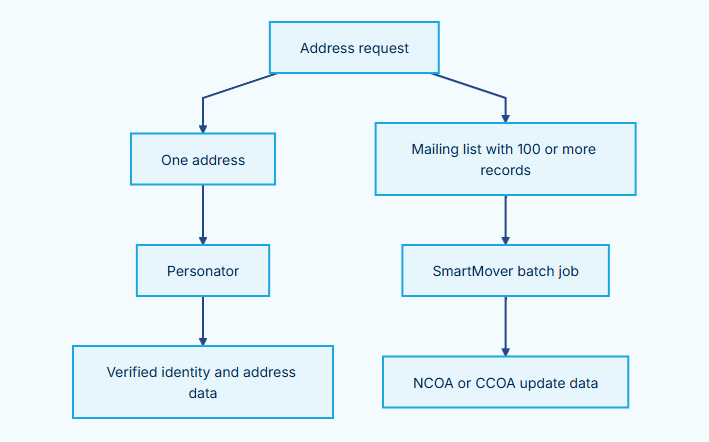

Processing Alternative Flow

This flow selects the correct service for the address request.

Diagram flow

1. Address request → One address

2. Address request → Mailing list with 100 or more records

3. One address → Personator

4. Personator → Verified identity and address data

5. Mailing list with 100 or more records → SmartMover batch job

6. SmartMover batch job → NCOA or CCOA update data

Compliance Requirements

SmartMover data is licensed for mailing purposes only.

Do not use NCOA or CCOA data for:

• Data analytics.

• Research.

• List brokering.

• Consumer profiling.

• Any purpose outside postal address maintenance.

Confirm that your intended use follows your USPS, Canada Post, and Melissa license agreements before you start a batch job.

Batch Processing

SmartMover batch processing updates U.S. addresses with USPS NCOALink data and Canadian addresses with Canada Post CCOA data.

Note

Required Use Restriction: Use SmartMover only for mailing address maintenance. Do not use NCOA or CCOA data for analytics, research, list brokering, or consumer profiling.

Introduction

SmartMover runs asynchronous Batch Apex jobs through MD_SmartMoverJobWSExt. It sends mailing list records to Melissa SmartMover services, applies returned address updates, and creates tracking records.

US NCOA processing requires at least 100 unique names and addresses. Batches below 100 records receive CASS standardization only. They do not return NCOA move data.

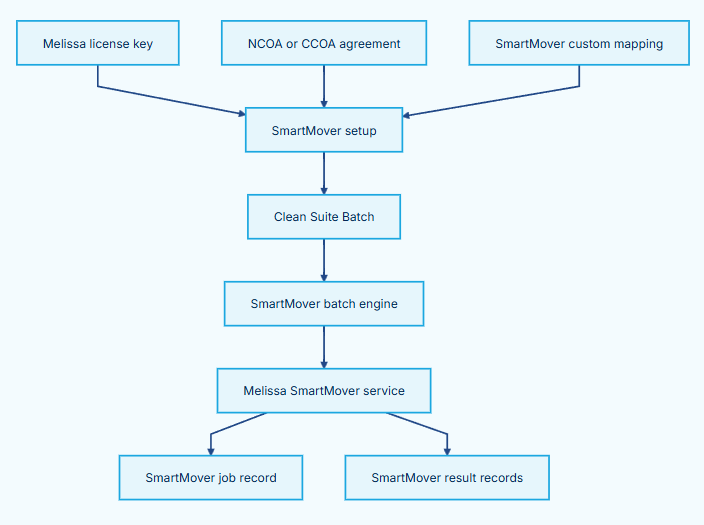

Batch Job Flow

This flow shows how SmartMover processes a mailing list batch.

Diagram flow

1. Melissa license key → SmartMover setup

2. NCOA or CCOA agreement → SmartMover setup

3. SmartMover custom mapping → SmartMover setup

4. SmartMover setup → Clean Suite Batch

5. Clean Suite Batch → SmartMover batch engine

6. SmartMover batch engine → Melissa SmartMover service

7. Melissa SmartMover service → SmartMover job record

8. Melissa SmartMover service → SmartMover result records

SmartMover Batch Jobs Tab

Use the SmartMover Batch Jobs tab to review and manage each submitted batch.

The tab lists MDPERSONATOR__SmartMoverJob__c records. Each job record includes:

• Job Id.

• List name.

• Processing type (NCOA or CCOA).

• Status.

• Total record count.

• Processed record count.

• Error count.

• USPS or Canada Post report links when available.

SmartMover Batch Records

Clean Suite creates one MDPERSONATOR__MD_SmartMoverResult__c record for each source record that it processes.

Each result record contains input values, returned address values, and SmartMover codes. Use these records to audit the batch, review move results, and correct source field mappings.

How to use the Clean Suite Batch interface

For the batch interface with screenshots of each step, see Clean Suite Batch Processing.

Complete the one-time setup steps before you start a job:

1. Add your Melissa license key in Admin Panel → License.

2. Open Admin Panel → SmartMover.

3. Select the NCOA Agreement checkbox for U.S. processing or CCOA Agreement checkbox for Canadian processing.

4. Set List Owner Frequency and Processing Type values.

5. Create a Custom Mapping for SmartMover US or SmartMover Canada.

Then start a batch job:

1. Open the Clean Suite Batch tab.

2. Select SmartMover US (MD_SmartMoverBatch) or SmartMover Canada (MD_SmartMoverCABatch) as the engine.

3. Select the target object and SmartMover mapping.

4. Enter a list name that identifies the mailing list.

5. (Optional) Enter a custom SOQL query to limit the mailing list.

6. Click Run Batch.

7. Monitor the job through the SmartMover Batch Jobs tab and Setup → Async Apex Jobs.

Advanced Batch Processing

Exposed Methods

Call MD_CleanSuiteBatchController.executeBatchJob to run SmartMover jobs from Apex.

public static Id executeBatchJob(
  String Engine,              // 'MD_SmartMoverBatch' or 'MD_SmartMoverCABatch'
  String BatchObject,         // Target object API name
  String Query,               // SOQL query string
  String Mapping,             // SmartMover Custom Mapping Name
  Boolean RecordUpdate,       // Ignored by SmartMover engine
  Boolean ProcessAll,         // Ignored by SmartMover engine
  Boolean CustomQuery,        // true for custom SOQL
  String SmartMoverListName,  // Mailing list name
  String SmartMoverJobId      // Optional job ID. Empty string creates one.
)

Sample Code

// Start a U.S. NCOA SmartMover batch job
Id batchJobId = MDPERSONATOR.MD_CleanSuiteBatchController.executeBatchJob(
    'MD_SmartMoverBatch',
    'Contact',
    'SELECT Id FROM Contact WHERE MailingCountry = \'US\'',
    'Contact NCOA Mapping',
    true,
    false,
    true,
    '2026 Spring Direct Mail List',
    ''
);

System.debug('SmartMover Batch Job ID: ' + batchJobId);

Best Practices

1. Confirm Minimum Record Count: Submit at least 100 unique names and addresses for U.S. NCOA move results.

2. Use Descriptive List Names: Include campaign, region, and date in list names for audit records.

3. Review Result Records: Check MD_SmartMoverResult__c results before you use updated addresses for a mailing.

Engineering Reference

This reference documents the SmartMover Apex architecture, public batch interface, and data model.

Note

Required Use Restriction: SmartMover processes USPS NCOALink and Canada Post CCOA data for mailing purposes only.

Exposed Methods

MD_CleanSuiteBatchController.executeBatchJob

The controller routes SmartMover batch requests to MD_SmartMoverJobWSExt.

@AuraEnabled
public static Id executeBatchJob(
    String Engine,
    String BatchObject,
    String Query,
    String Mapping,
    Boolean RecordUpdate,
    Boolean ProcessAll,
    Boolean CustomQuery,
    String SmartMoverListName,
    String SmartMoverJobId
)

Valid SmartMover engine values:

• MD_SmartMoverBatch: U.S. NCOA processing.

• MD_SmartMoverCABatch: Canadian CCOA processing.

MD_SmartMoverJobWSExt Constructor Constructor

public MD_SmartMoverJobWSExt(
  String query,
  String mappingName,
  String jobId,
  String actionCode,
  String listName
)

Parameter	Description
query	SOQL query used to select target records.
mappingName	SmartMover Custom Mapping record Name.
jobId	SmartMover tracking job identifier.
actionCode	NCOA for U.S. records or CCOA for Canadian records.
listName	Mailing list name stored on job record.

SmartMover Batch Architecture

This flow shows how SmartMover creates tracking and result data.

Diagram flow

1. Batch controller → SmartMover batch class

2. Suite settings → SmartMover batch class

3. Custom mapping → SmartMover batch class

4. SmartMover batch class → NCOA or CCOA action

5. NCOA or CCOA action → SmartMover service

6. SmartMover service → SmartMover job record

7. SmartMover service → SmartMover result records

Data Model

Object	Purpose
MDPERSONATOR__SmartMoverJob__c	Stores one tracking record for each batch job.
MDPERSONATOR__MD_SmartMoverResult__c	Stores one processing result for each source record.
MDPERSONATOR__MD_customMappings2__c	Stores SmartMover input and output mapping JSON.
MDPERSONATOR__MD_suiteSetting__c	Stores license key and NCOA/CCOA processing settings.

Sample Code

Start an NCOA Job

String query = 'SELECT Id FROM Contact WHERE MailingCountry = \'US\'';
String mappingName = 'Contact NCOA Mapping';
String generatedJobId = 'NCOA-' + String.valueOf(Datetime.now().getTime());

MDPERSONATOR.MD_SmartMoverJobWSExt batch = new MDPERSONATOR.MD_SmartMoverJobWSExt(
    query,
    mappingName,
    generatedJobId,
    'NCOA',
    'Spring Mailing 2026'
);

Id asyncJobId = Database.executeBatch(batch, 100);
System.debug('Started SmartMover job: ' + asyncJobId);

Best Practices

1. Use the Controller for UI Integrations: Use executeBatchJob when Lightning components start SmartMover jobs.

2. Do Not Reduce Batch Size: Run batch chunks at 100 records. The SmartMover engine expects this size.

3. Save Job IDs: Keep SmartMoverJobId values for tracking and troubleshooting each mailing list submission.

API Reference Guide

This guide describes the Melissa SmartMover API endpoints and data returned by Clean Suite batch jobs.

Note

Required Use Restriction: Use NCOA and CCOA data only for mailing address maintenance.

Web Service Endpoints

Service	Base URL	Use
SmartMover US	https://smartmover.melissadata.net/v3/WEB/SmartMover/doSmartMover	USPS NCOALink processing.
SmartMover Canada	https://smartmovercanada.melissadata.net/v3/WEB/SmartMover/doSmartMover	Canada Post CCOA processing.

• Supported Methods: POST

• Response Format: JSON

• Minimum U.S. NCOA Records: 100 unique names and addresses.

API Request and Response Flow

This flow shows the batch request and JSON response path.

Diagram flow

1. Mailing list records → Clean Suite batch job

2. Clean Suite batch job → POST SmartMover request

3. POST SmartMover request → NCOA action

4. POST SmartMover request → CCOA action

5. NCOA action → SmartMover service

6. CCOA action → SmartMover service

7. SmartMover service → JSON response fields

Input Request Parameters

Parameter	Type	Description
id	String	Melissa Customer ID license key. Required.
opt	String	Processing option string.
jobid	String	Unique SmartMover job identifier.
listname	String	Mailing list name.
FullName	String	Full name of recipient.
AddressLine1	String	Street address.
AddressLine2	String	Unit or suite number.
City	String	City or locality.
State	String	State or province.
PostalCode	String	ZIP code or Canadian postal code.

Note: The action parameter (NCOA for United States or CCOA for Canada) is determined automatically by the batch engine you select. When you select SmartMover US (MD_SmartMoverBatch), the package sets action to NCOA. When you select SmartMover Canada (MD_SmartMoverCABatch), it sets action to CCOA. You do not specify this parameter directly.

Output Response Fields

Field Name	Type	Description
RecordID	String	Source record identifier.
Results	String	Comma-separated SmartMover status codes.
AddressLine1	String	Updated standardized street address.
AddressLine2	String	Updated secondary address line.
City	String	Updated city.
State	String	Updated state or province.
PostalCode	String	Updated ZIP code or postal code.
MoveTypeCode	String	Move type classification.
MoveDate	String	Reported move date.
CarrierRoute	String	USPS carrier route.
ReportURL	String	USPS or Canada Post processing report link.

Common Result Codes

SmartMover returns the following result code families.

Result Code	Meaning	Category
CS01	Move with New Address	Success
CS02	Standardized Address	Success
CS03	Move Input Requirements not Satisfied	Informational
CS04	Move but No New Address	Informational
CS10	Individual Move	Informational
CS11	Family Move	Informational
CS12	Business Move	Informational
CS13	Daily Delete	Informational
CM01–CM23	SmartMover Match Status codes	Various
AC, AE AS	Address Change, Error, and Status codes	Shared families

Result Codes

SmartMover returns the following record-level result code families. SmartMover can also return the shared Address Change (AC), Address Error (AE), and Address Status (AS) code families.

For all SmartMover result codes, see Result Codes - SmartMover.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes.

BusinessCoder US

BusinessCoder US uses a businessCoder custom mapping to process a Salesforce record.

API Reference

ItemPackage behavior
Named Credential	MelissaData_BusinessCoder_API
Endpoint	callout:MDPERSONATOR__MelissaData_BusinessCoder_API/WEB/BusinessCoder/doBusinessCoderUS in a subscriber org.
Method	POST
Headers	Accept: application/json and Content-Type: application/json
Request limit	doProcess groups records in sets of 100.

The request body contains t: ListwareForSalesforce, id from MD_suiteSetting__c.customerId__c, opt: '', a fixed cols value, and Records.

The mapped processing request sends these fields for each record:

Payload field	Request field
rec	RecordID
comp	CompanyName
phone	Phone
a1 and a2	AddressLine1 and AddressLine2
city, state, postal, and ctry	City, State, PostalCode, and Country
mak	MAK
stock	StockTicker
web	WebAddress
mek	MEK

The Aura callable method maps only company, addressLine1, city, state, postalCode, country, ticker, and web from the source record. It does not map a phone value for that path.

The package requests these columns: LocationType, Phone, EmployeesEstimate, SalesEstimate, StockTicker, WebAddress, GrpAddressDetails, GrpBusinessCodes, GrpBusinessDescription, GrpGeoCode, and GrpCensus. The general doProcess path also requests Contacts.

Response and Mapping Contract

The package stores these response values in MD_businessCoderResult__c. A businessCoder output map can write selected values to the source record.

Response field group	Stored fields
Identity and result	RecordID, Results, CompanyName, CurrentCompanyName
Address	AddressLine1, Suite, City, State, PostalCode, Plus4, CountryCode, CountryName, DeliveryIndicator, LocationType
Business	EIN, EmployeesEstimate, SalesEstimate, StockTicker, WebAddress
Industry	SICCode1 through SICCode3, SICDescription1 through SICDescription3, NAICSCode1 through NAICSCode3, and NAICSDescription1 through NAICSDescription3
Location and census	Latitude, Longitude, CountyFIPS, CountyName, CensusTract, CensusBlock, PlaceCode, PlaceName
Melissa keys	MelissaEnterpriseKey, MelissaAddressKey, MelissaAddressKeyBase

The response type also parses TotalContacts, TotalSuggestions, Contacts, and Suggestions. The output-map update path does not map those values to the source record.

Output-map key	Stored response field
businessResult	Result record Id
resultCodes	Results__c
currentCompanyName	CurrentCompanyName__c
addressLine1, city, state, postalCode	Corresponding address fields
phone, web, employeesEstimate, ticker, salesEst	Corresponding business fields
sicCode1 through sicCode3	SICCode1__c through SICCode3__c
sicDesc1 through sicDesc3	SICDescription1__c through SICDescription3__c
naicsCode1 through naicsCode3	NAICSCode1__c through NAICSCode3__c
naicsDesc1 through naicsDesc3	NAICSDescription1__c through NAICSDescription3__c
censusBlock, censusTract	Corresponding census fields
companyName, countryCode, countryName	Corresponding identity fields
countyFips, countyName, deliveryIndicator, ein	Corresponding location and business fields
latitude, locationType, longitude	Corresponding geocode fields
melissaEnterpriseKey, melissaAddressKey, melissaAddressKeyBase	Corresponding Melissa key fields
placeCode, placeName, plus4, suite	Corresponding address fields

The package response type has no email, franchise, or Fortune indicator fields. Do not map or describe those values as BusinessCoder output.

Engineering Reference

Method	Visibility and return Behavior	Description
doBusinessCoder(Id recordId)	global static String, @AuraEnabled	Processes every businessCoder mapping for the record object. It returns '' when no custom mapping exists, FAIL when the source object cannot be updated, and otherwise Success.
doOneBusinessCoder(Id recordId)	global static void, @Future(callout=true)	Calls doBusinessCoder in a future callout context.
doProcess(List<MD_BusinessCoderRequest>, String mappingName)	public List<MD_BusinessCoderResponse>	Sends the request records and adds the mapping name to each response.
doSaveResponse(List<MD_BusinessCoderResponse>)	public void	Stores responses in MD_businessCoderResult__c.

Single Record Processing

The quick action CS_BusinessCoderAction calls doBusinessCoder during initialization.

1. Open a record that has a businessCoder mapping.

2. Select Verify Business.

3. Wait for the quick action to close.

4. Read the confirmation message that appears at the top of the page.

5. Review the refreshed record.

The action runs immediately. It writes configured output-map values and stores the response. It closes the quick action, shows a success or failure confirmation message, and refreshes the record view. No review dialog or manual record save occurs.

Batch Processing

The installed package has no MD_BusinessCoderBatch class and no BusinessCoder batch engine. Do not configure the Clean Suite batch interface for BusinessCoder US. You can call doProcess from custom Apex only when your implementation supplies MD_BusinessCoderRequest records and manages Salesforce callout limits.

Apex Invocation

String status = MDPERSONATOR.MD_BusinessWSExt.doBusinessCoder(recordId);

The method returns a package status string. Read MD_businessCoderResult__c.Results__c or mapped output fields for service results.

Administrator Options

Clean Suite administrators can configure one option in Salesforce Setup to control BusinessCoder US behavior.

Option	API Field	Allowed Values	Default	Effect
Return Dominant Business	dominantBusiness__c	yes, no	yes	When yes, returns the single dominant business classification per record. When no, returns all matching classifications.

Result Codes

BusinessCoder US can return the shared Address Error, Address Status, Append Results, Geocode Error, Geocode Status, Phone Error, and Phone Status code families. It also returns these record-level code families.

For all BusinessCoder result codes, see BusinessCoder-ResultCodesFull.

For the complete result-code reference, roadmap, and result-code routing guidance, see Result Codes
